Packer Bottles · Spec sheet IT-CA-08
PET Packer Bottle 150 mL with Support Ring R-38
PET Packer Bottle 150 mL with Support Ring R-38 in Virgin PET with R-38 neck finish · 360 pieces per box. Technical data sheet controlled under ISO 22000.

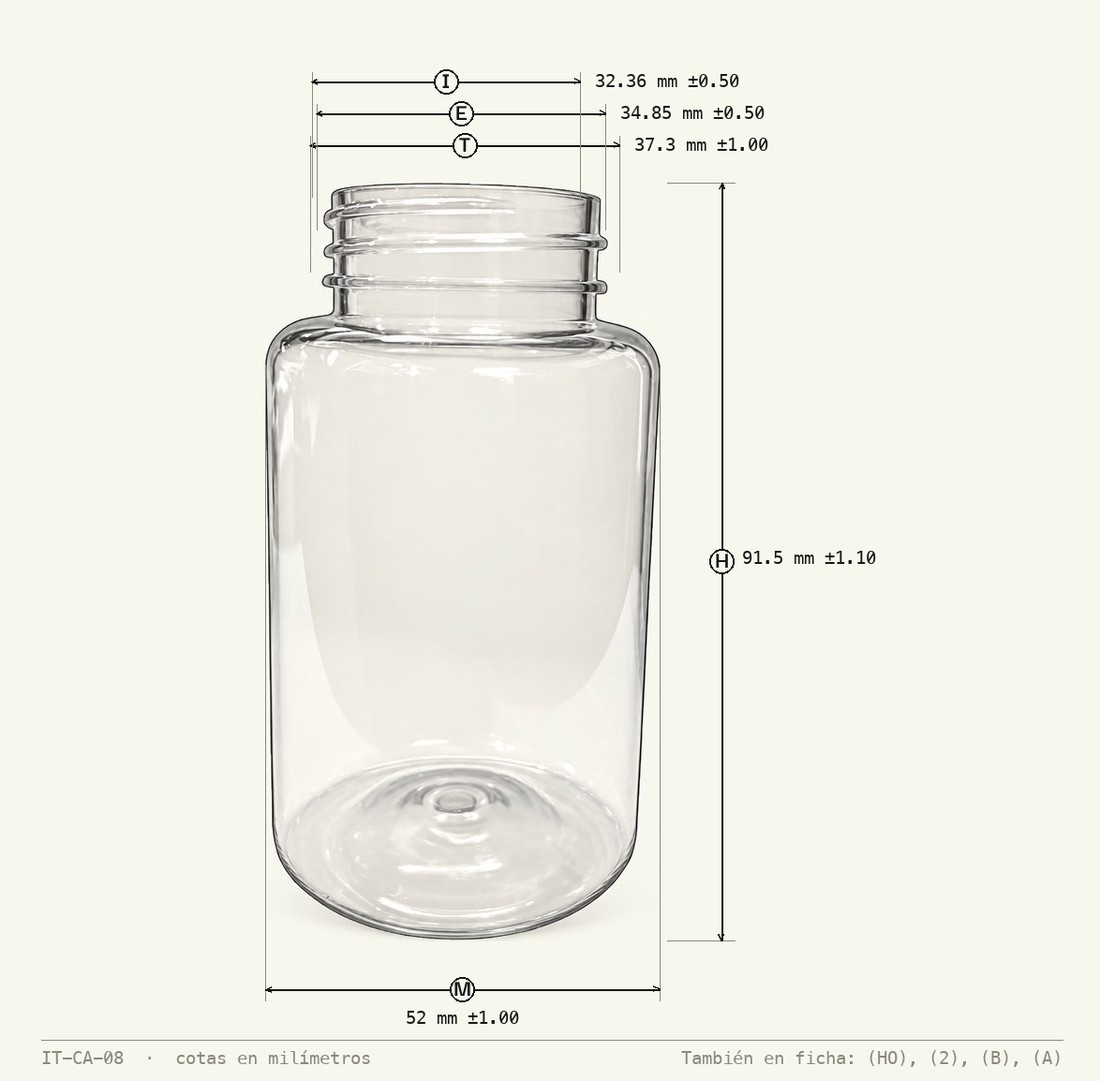

Measurements and tolerances
Spec sheet IT-CA-08 · Rev. 2| Dimension | Measurement and tolerance |
|---|---|
| HHeight | 91.5 mm±1.10 |
| MWidth | 52 mm±1.00 |
| TThread Ø | 37.3 mm±1.00 |
| EOuter Ø (no thread) | 34.85 mm±0.50 |
| IInner mouth Ø | 32.36 mm±0.50 |
| ARing Ø | 37.6 mm±0.50 |
Wall thickness
| HOShoulder thickness | 0.45 mm±0.28 |
| 2Body thickness | 0.5 mm±0.30 |
| BBase thickness | 0.4 mm±0.20 |
These are process-control measurements, not selection ones: they define how the piece is blown. They come in full on the downloadable data sheet.
Packaging and shipping
| Box dimensions | 48 x 35 x 55 cm |
| Box weight | 7.92 kg |
| Boxes per pallet | 21 |
How it goes on the pallet
| Pallet weight | 189.22 kg |
| Layers per pallet | 6 layers |
| Arrangement per layer | 6-6-6 (10 rows) |
How much space my order takes
Type how many pieces you need and the page calculates the shipment from the packaging data on this sheet. Today that math is done over the phone.
Whole pallets, which is how freight is charged. The weight includes product, boxs and 22.9 kg per wooden pallet.
How it is packed. New box with double bag. The packaging weighs 100 g per bag and 880 g for the box with one bag. Bag size 63 x 26 x 140 cm.
Colors
The most requested on this piece- Clear (transparent)
- Amber
- Blue
- Green
- White
The circles indicate the color, not a photo of the piece in that color. It is pigmented to the Pantone you request: these are the most commonly used and the list doesn’t end here. To approve a shade you must request a physical sample.
It is released against this data sheet, with acceptance criteria by defect class. How it is inspected · Download the full technical data sheet
