Beverages · Spec sheet IT-CA-40
Boss Bottle 1000 mL R-28
Boss Bottle 1000 mL R-28 in Virgin PET with R-28 neck finish · 128 pieces per bag. Technical data sheet controlled under ISO 22000.

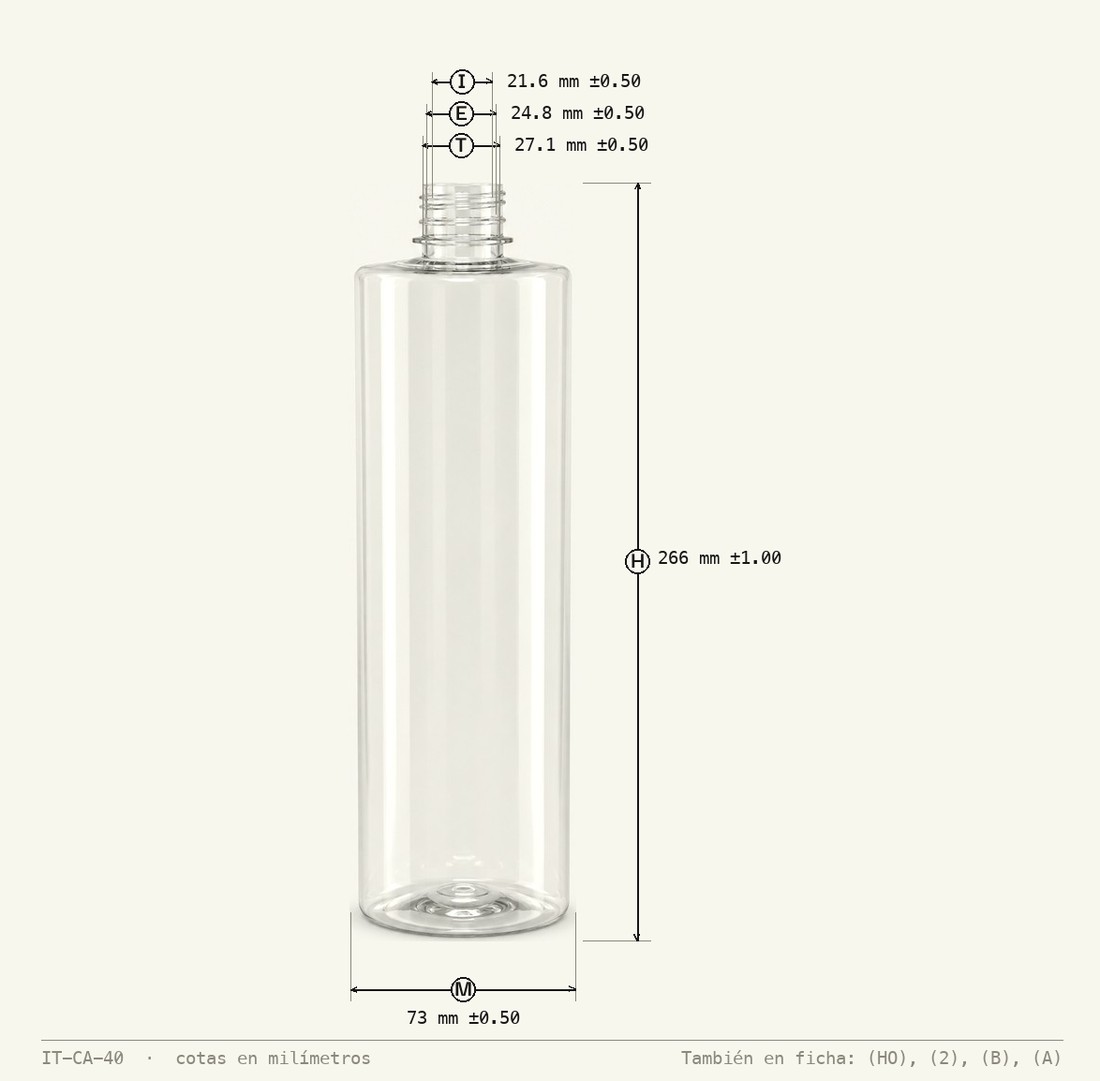

Measurements and tolerances
Spec sheet IT-CA-40 · Rev. 0| Dimension | Measurement and tolerance |
|---|---|
| HHeight | 266 mm±1.00 |
| MWidth | 73 mm±0.50 |
| TThread Ø | 27.1 mm±0.50 |
| EOuter Ø (no thread) | 24.8 mm±0.50 |
| IInner mouth Ø | 21.6 mm±0.50 |
| ASupport ring Ø | 33 mm±0.50 |
Wall thickness
| HOShoulder thickness | 0.27 mm±0.15 |
| 2Body thickness | 0.25 mm±0.15 |
| BBase thickness | 0.35 mm±0.15 |
These are process-control measurements, not selection ones: they define how the piece is blown. They come in full on the downloadable data sheet.
Packaging and shipping
| Box dimensions | 63 x 26 x 140 cm |
| Box weight | 5.22 kg |
| Boxes per pallet | 16 |
How it goes on the pallet
| Pallet weight | 108.52 kg |
| Layers per pallet | 16 |
| Arrangement per layer | 8-8-8-8-8 |
How much space my order takes
Type how many pieces you need and the page calculates the shipment from the packaging data on this sheet. Today that math is done over the phone.
Whole pallets, which is how freight is charged. The weight includes product, bags and 25 kg per wooden pallet.
How it is packed. Use one bag. The packaging weighs 100 g per bag and 880 g for the box with one bag. Bag size 63 x 26 x 140 cm.
Colors
The most requested on this piece- Clear (transparent)
The circles indicate the color, not a photo of the piece in that color. It is pigmented to the Pantone you request: these are the most commonly used and the list doesn’t end here. To approve a shade you must request a physical sample.
It is released against this data sheet, with acceptance criteria by defect class. How it is inspected · Download the full technical data sheet
